Pure Type 1 25kA Four-Pole Protection for Critical Three-Phase Four-Wire Systems

Product Overview

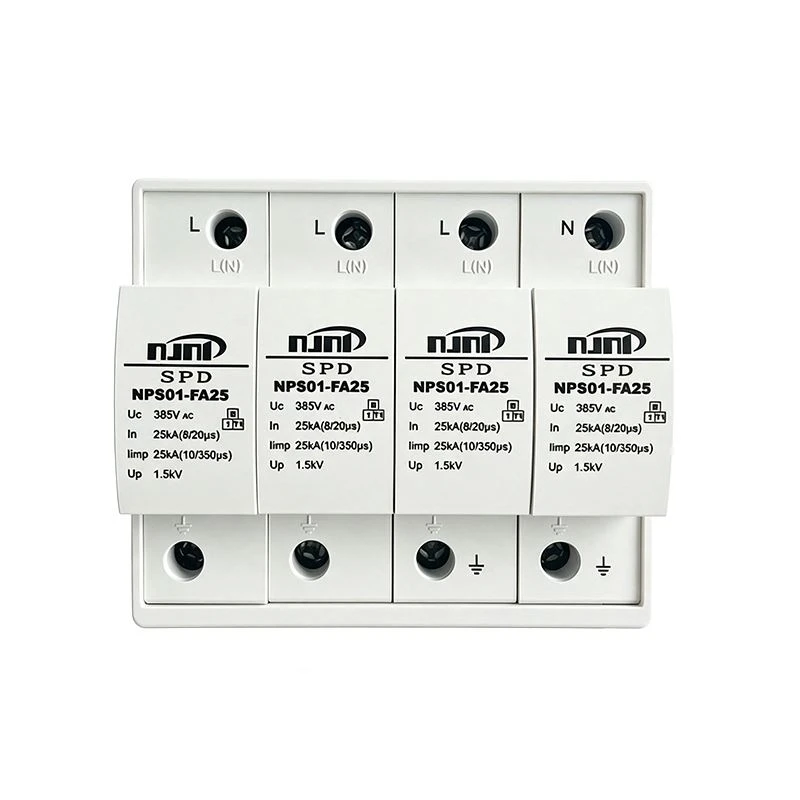

NPS01-FA25 AC 4P Surge Protective Device is a high-capacity pure spark gap Type 1 (Class I) SPD developed for important three-phase four-wire power distribution systems.

The product complies with EN/IEC 61643-11 and GB/T 18802.11 standards and adopts an integrated L1/L2/L3/N four-pole structure. Each pole is equipped with an independent high-capacity graphite spark gap, providing a lightning impulse current capability of Iimp 25kA (10/350μs).

It is capable of directly discharging high-energy lightning currents and is ideal for primary protection at the incoming end of critical three-phase power systems.

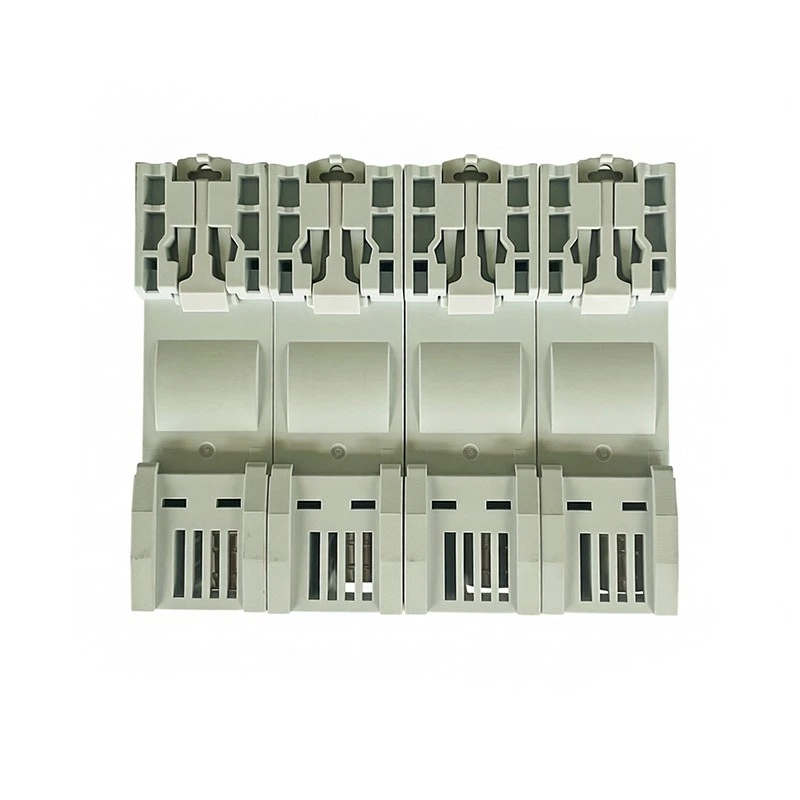

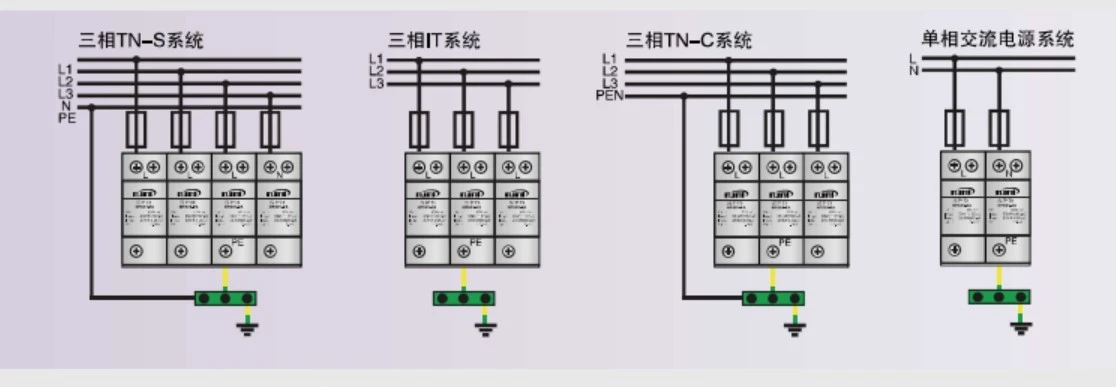

The device features a 108mm modular structure, supports 35mm DIN rail mounting, and covers Uc voltage levels from 275V to 385V.

It is widely used in data centers, power substations, communication hubs, rail transit systems, and other critical infrastructure.

Independent Four-Pole Graphite Spark Gap, Reliable Long-Term Protection

Each pole adopts high-capacity graphite spark gap technology with excellent follow current interruption capability and strong energy absorption performance.

The independent four-pole structure ensures that a single pole failure does not affect other poles, improving overall system safety.

During normal operation, the SPD maintains zero leakage current and zero power consumption. The optimized graphite electrode design provides stable discharge performance and excellent repeated surge withstand capability.

High-purity copper conductors and large terminals provide efficient current transmission, low resistance, and reduced heat generation under high-current conditions.

The enclosure uses UL94V-0 flame-retardant material with IP20 protection rating, meeting industrial protection requirements.

315A Backup Fuse Coordination for High-Reliability Power Systems

Technical specifications:

Nominal discharge current In: 25kA (8/20μs)
Voltage protection level Up: 1.5kV
Response time ≤100ns
Recommended backup fuse: 315A gG
Cable size: 4-35mm²
Operating temperature: -40℃ to +80℃

Equipped with independent thermal disconnection and red/green status indicators for easy maintenance.

Optional remote alarm contacts support connection to building automation systems or power monitoring platforms for centralized supervision.

A reliable Type 1 lightning protection solution for critical three-phase four-wire power distribution systems.

Model	NPS01-FA25/275/4	NPS01-FA25/320/4	NPS01-FA25/385/4
SPD Test Category	Type1/ClassI (EN/IEC61643-11, GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V	320V	385V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	25kA	25kA	25kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	25kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	1.5kV	1.5kV	1.5kV
Voltage Protection Level [L-PE, N-PE] Up	≤100ns
Response Time	315A gG Fuse
Backup Fuse	Normally Open and Normally Closed Contact Terminals
Remote Signal Alarm	AC: 250V/0.5A, 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Energy Un/In	0.5mm² to 1.5mm²
Remote Alarm Signal Connection Wire	Floating Changeover Contact
Remote Contact Type	-40℃ to +80℃; 5%~95%
Temperature and Humidity Range	Red: Failed; Green: Normal
Disconnector Operation Indicator	4mm² Solid Wire / Flexible Wire
Minimum Installation Conductor Cross-Section Area (L, N, PE)	35mm² Standard Wire / 25mm² Flexible Wire
Maximum Installation Conductor Cross-Section Area (L, N, PE)	35mm Standard DIN Rail
Installation Method	Red Thermoplastic Material, UL94V-0
Enclosure Material	IP20
Enclosure Protection Degree	W×L×H: 108×91×66mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
