Pure Type 1 15kA Lightning Protection Device for Power Incoming Systems

Product Overview

NPS01-FA15 AC 1P Surge Protective Device is a pure spark gap Type 1 (Class I) SPD developed by Ningpu Lightning Protection. It complies with EN/IEC 61643-11 and GB/T 18802.11 standards and is designed for primary lightning protection applications.

The device adopts high-performance graphite spark gap technology with a lightning impulse current capability of Iimp 15kA (10/350μs), allowing direct discharge of high-energy lightning currents from the first lightning strike.

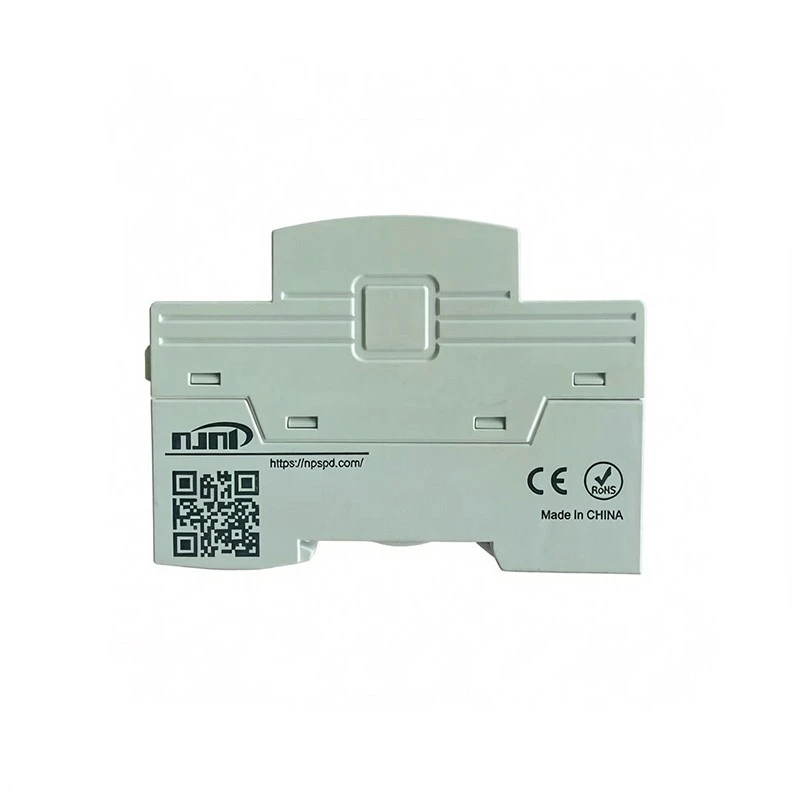

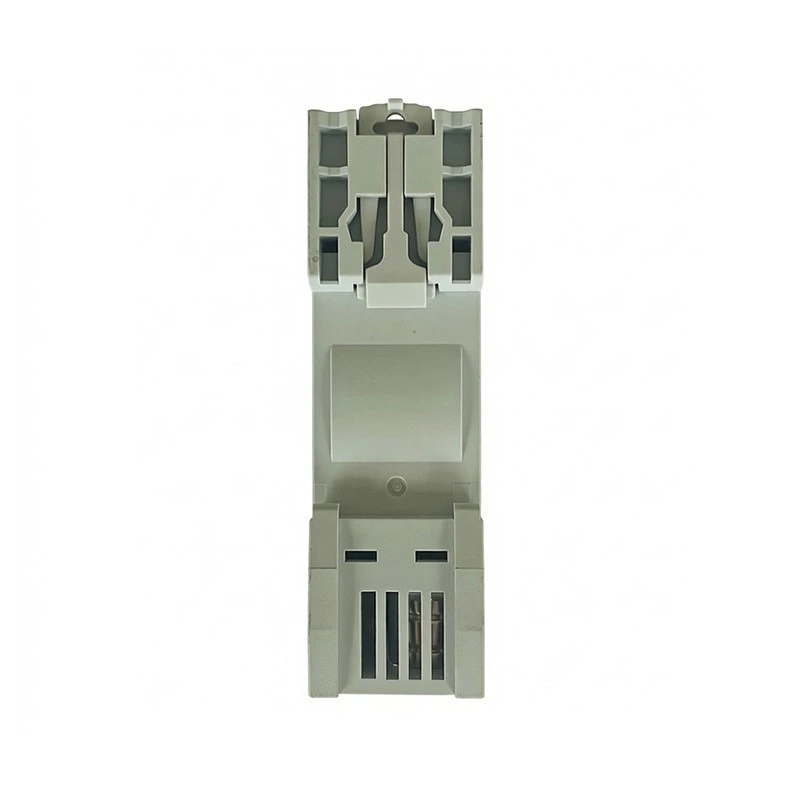

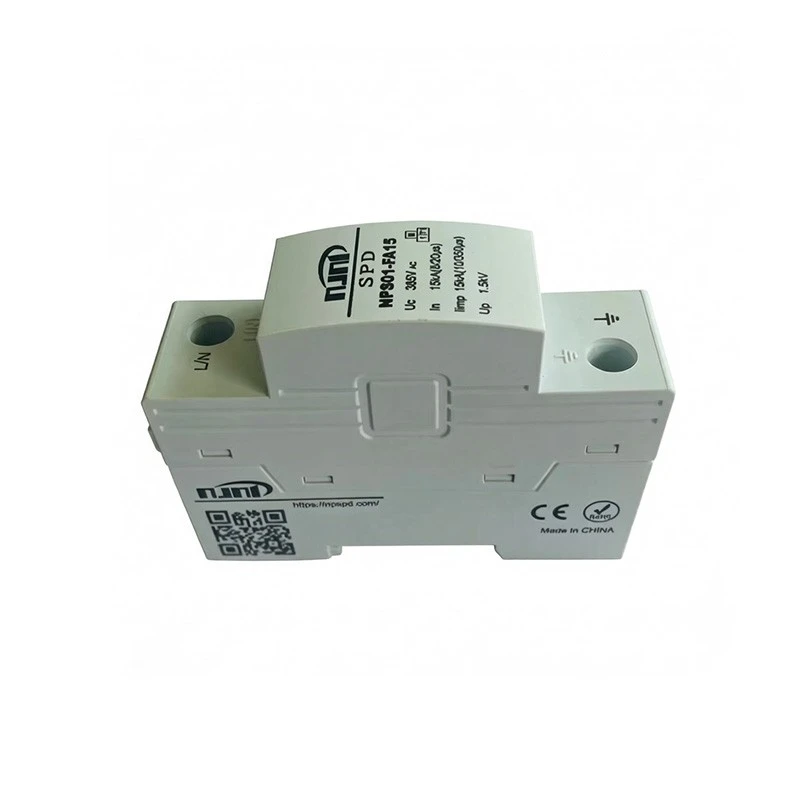

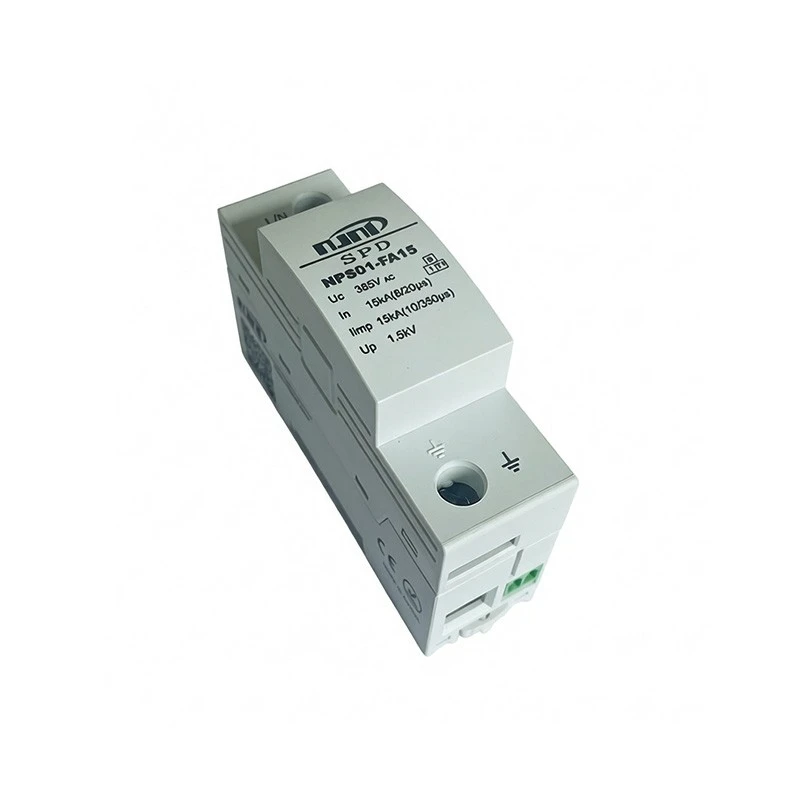

With a compact 27mm single-pole modular design, the product supports 35mm DIN rail installation and covers Uc voltage levels from 275V to 385V. It is widely used in building electrical systems, power distribution, communication base stations, photovoltaic and wind power systems.

Graphite Spark Gap Technology, Long Service Life and High Reliability

The high-purity graphite spark gap provides excellent follow current interruption capability, maintaining zero leakage current and zero power consumption during normal operation.

The optimized electrode structure ensures stable discharge performance and repeated surge resistance. High-purity copper conductive paths and large terminals provide low resistance and strong current capacity.

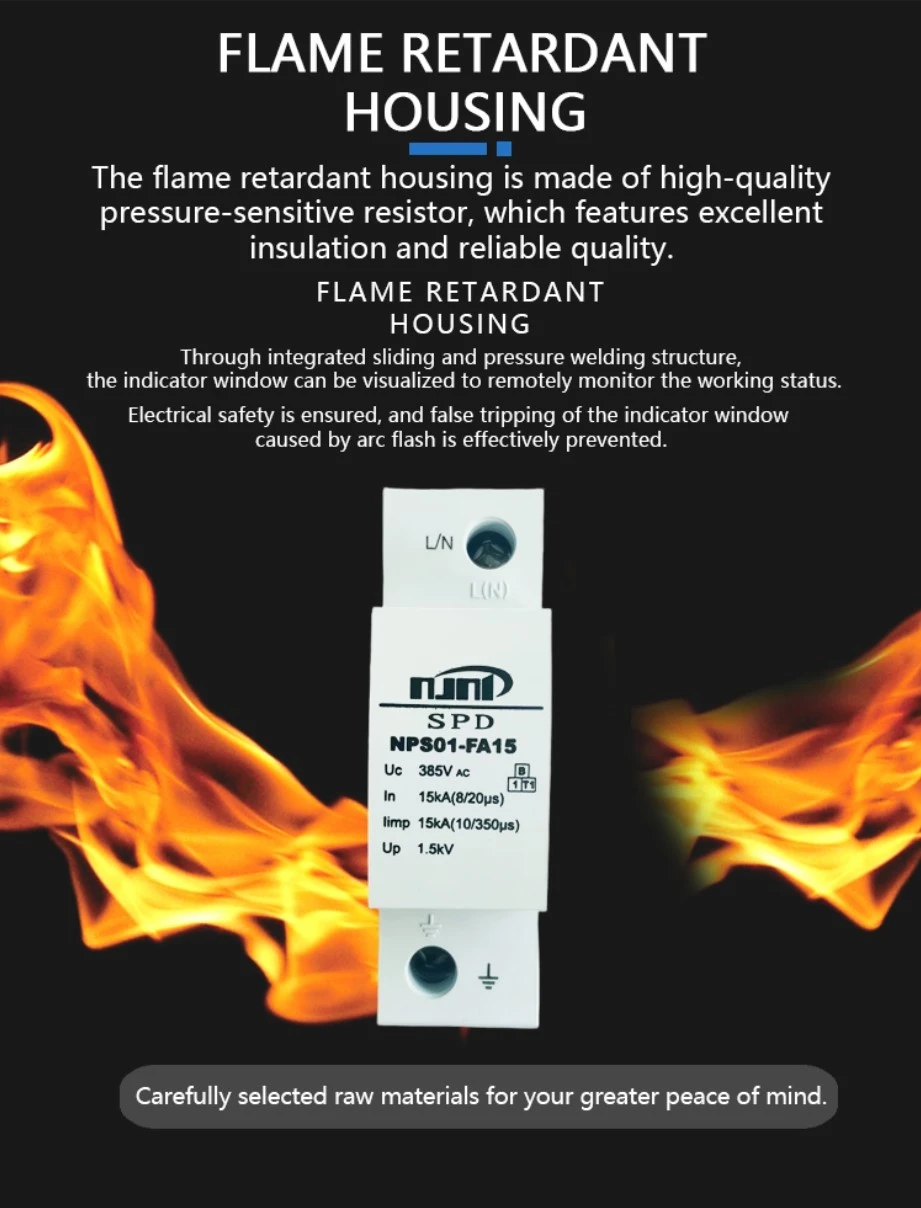

The housing is made of UL94V-0 flame-retardant material with IP20 protection rating. Each unit undergoes factory impulse current testing to ensure reliable performance.

200A Backup Fuse Compatible for High-Current Protection

Key parameters:

Nominal discharge current In: 15kA (8/20μs)
Voltage protection level Up: 1.5kV
Response time ≤100ns
Recommended backup fuse: 200A gG
Operating temperature: -40℃ to +80℃
Humidity: 5%-95%
Cable connection: 4-35mm²

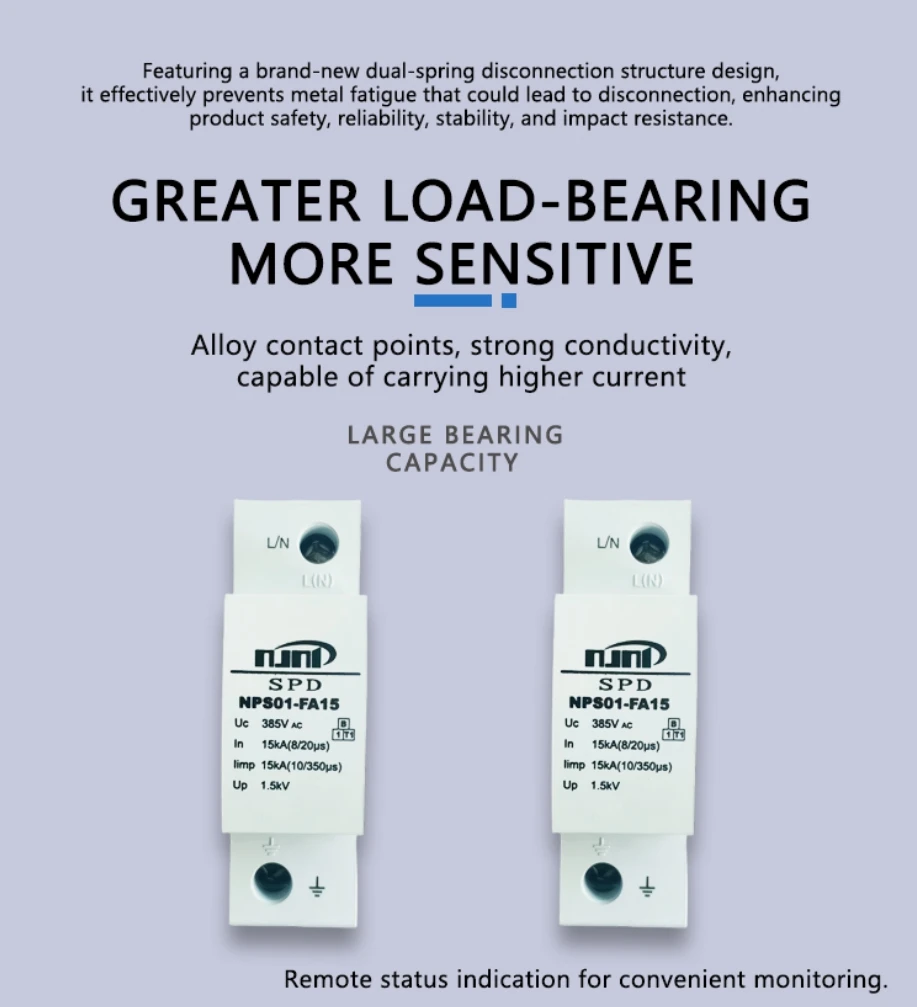

Equipped with thermal disconnection and red/green status indication. Optional remote alarm contacts support centralized monitoring.

It is a reliable Type 1 lightning protection solution for high-current power distribution systems.

Model	NPS01-FA15/275/1	NPS01-FA15/320/1	NPS01-FA15/385/1
SPD Test Category	Type1/ClassI (EN/IEC61643-11,GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V	320V	385V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	15kA	15kA	15kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	15kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	1.5kV	1.5kV	1.5kV
Voltage Protection Level [L-PE, N-PE] Up	≤100ns
Response Time	200A gG Fuse
Backup Fuse	Normally Open and Normally Closed Contact Terminals
Remote Signal Alarm	AC: 250V/0.5A, 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Energy Un/In	0.5mm² to 1.5mm²
Remote Alarm Signal Connection Wire	Floating Changeover Contact
Remote Contact Type	-40℃ to +80℃; 5%~95%
Temperature and Humidity Range	Red: Failed; Green: Normal
Disconnector Operation Indicator	4mm² Solid Wire / Flexible Wire
Minimum Installation Conductor Cross-Section Area (L, N, PE)	35mm² Standard Wire / 25mm² Flexible Wire
Maximum Installation Conductor Cross-Section Area (L, N, PE)	35mm Standard DIN Rail
Installation Method	Red Thermoplastic Material, UL94V-0
Enclosure Material	IP20
Enclosure Protection Degree	W×L×H: 27×91×66mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
