Pure Type 1 25kA High-Capacity Lightning Protection for Heavy-Duty Power Systems

Product Overview

NPS01-FA25 AC 1P Surge Protective Device is a high-capacity pure spark gap Type 1 (Class I) SPD developed by Ningpu Lightning Protection for areas with high lightning activity and critical power loads.

The device complies with EN/IEC 61643-11 and GB/T 18802.11 standards and features advanced graphite spark gap technology with a lightning impulse current capability of Iimp 25kA (10/350μs).

It can directly discharge the extremely high energy generated by direct lightning strikes, making it suitable for primary protection at the incoming side of important power distribution systems.

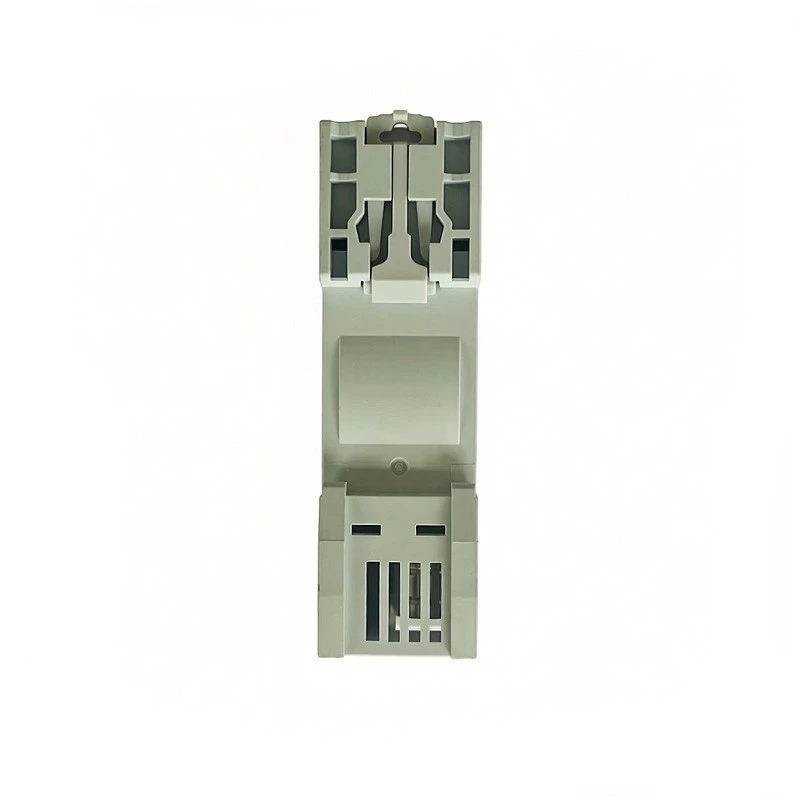

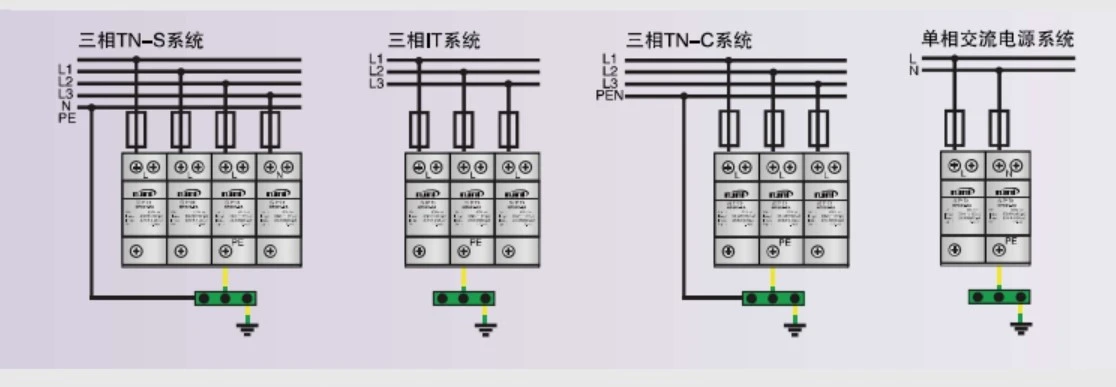

The compact 27mm single-pole modular structure supports 35mm DIN rail installation, with Uc voltage range from 275V to 385V. It is widely used in power systems, data centers, communication facilities, rail transit, and other critical applications.

High-Energy Graphite Spark Gap, Enhanced Surge Withstand Capability

The large-capacity graphite spark gap provides excellent follow current interruption and high-energy endurance performance. It maintains zero leakage current and zero power consumption during normal operation.

The precision-treated graphite electrodes provide stable discharge characteristics and strong resistance to repeated lightning impacts.

The high-purity copper conductive path and large terminals ensure efficient current transmission, low resistance, and reduced temperature rise under high current conditions.

The enclosure adopts UL94V-0 flame-retardant material with IP20 protection rating, providing reliable insulation and safety performance.

315A Backup Fuse Compatible for High-Current Distribution Systems

Technical specifications:

Nominal discharge current In: 25kA (8/20μs)
Voltage protection level Up: 1.5kV
Response time ≤100ns
Recommended backup fuse: 315A gG
Cable size: 4-35mm²
Operating temperature: -40℃ to +80℃

Integrated thermal disconnector and red/green status indicator allow quick fault identification. Optional remote alarm contacts support remote monitoring.

A high-reliability Type 1 lightning protection solution for heavy-current power distribution systems.

Model	NPS01-FA25/275/1	NPS01-FA25/320/1	NPS01-FA25/385/1
SPD Test Category	Type1/ClassI (EN/IEC61643-11, GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V	320V	385V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	25kA	25kA	25kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	25kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	1.5kV	1.5kV	1.5kV
Voltage Protection Level [L-PE, N-PE] Up	≤100ns
Response Time	315A gG Fuse
Backup Fuse	Normally Open and Normally Closed Contact Terminals
Remote Signal Alarm	AC: 250V/0.5A, 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Energy Un/In	0.5mm² to 1.5mm²
Remote Alarm Signal Connection Wire	Floating Changeover Contact
Remote Contact Type	-40℃ to +80℃; 5%~95%
Temperature and Humidity Range	Red: Failed; Green: Normal
Disconnector Operation Indicator	4mm² Solid Wire / Flexible Wire
Minimum Installation Conductor Cross-Section Area (L, N, PE)	35mm² Standard Wire / 25mm² Flexible Wire
Maximum Installation Conductor Cross-Section Area (L, N, PE)	35mm Standard DIN Rail
Installation Method	Red Thermoplastic Material, UL94V-0
Enclosure Material	IP20
Enclosure Protection Degree	W×L×H: 27×91×66mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
