Pure Type 1 25kA Two-Pole Protection for Single-Phase Critical Power Systems

Product Overview

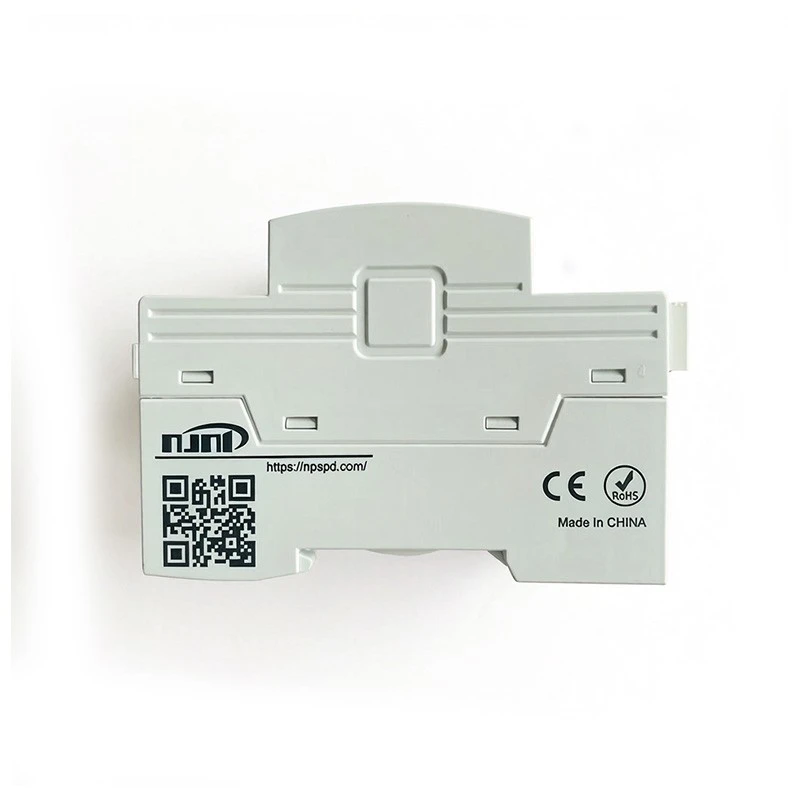

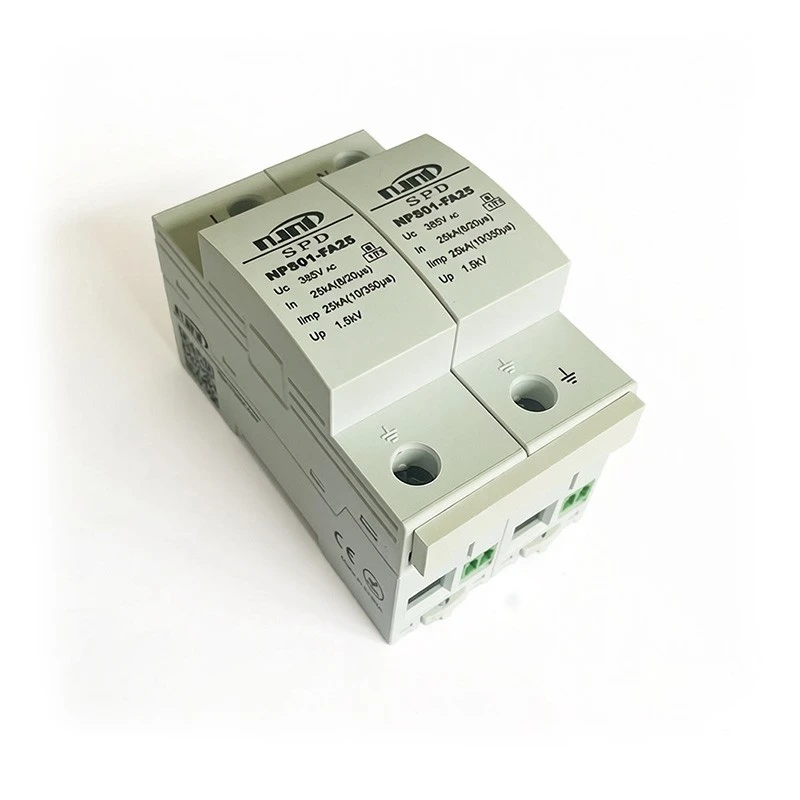

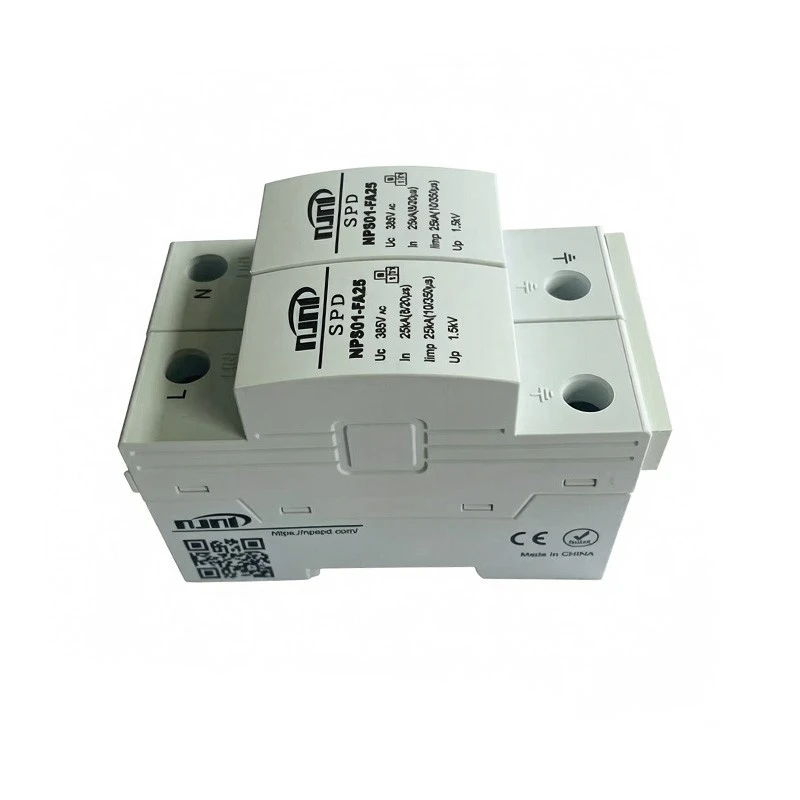

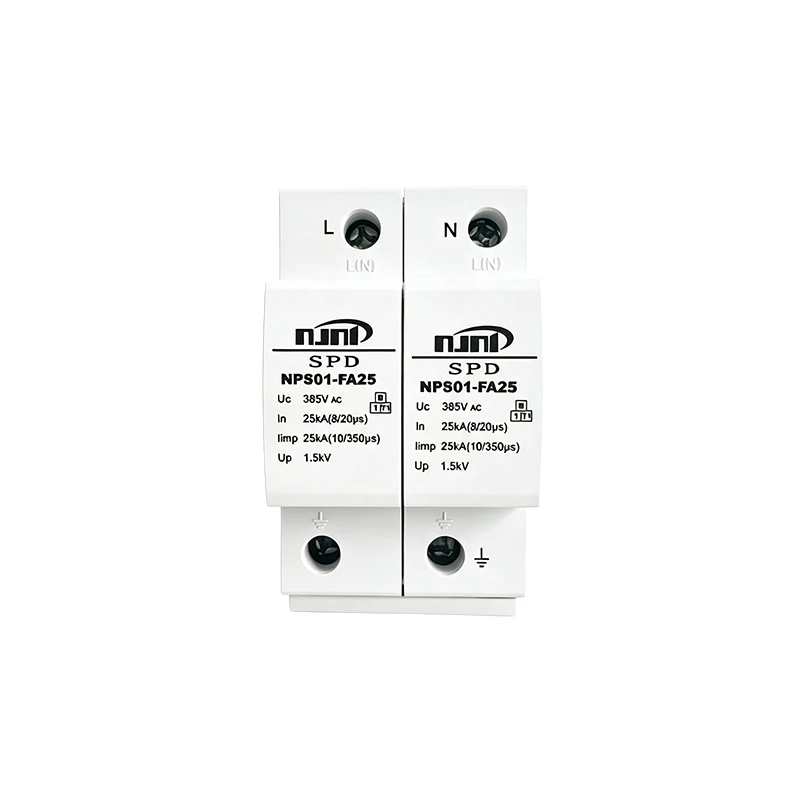

NPS01-FA25 AC 2P Surge Protective Device is a high-capacity pure spark gap Type 1 (Class I) SPD designed for critical single-phase power distribution systems.

It complies with EN/IEC 61643-11 and GB/T 18802.11 standards and adopts independent L-PE and N-PE graphite spark gaps. The lightning impulse current capability reaches Iimp 25kA (10/350μs), providing strong direct lightning protection.

The device can safely discharge high-energy lightning currents and is suitable for primary protection at the incoming side of important single-phase systems.

With a 54mm modular structure, it supports 35mm DIN rail installation and covers Uc voltage levels from 275V to 385V. It is widely applied in communication base stations, data centers, medical equipment power systems, and other critical single-phase applications.

Independent Dual High-Capacity Graphite Spark Gaps

Each pole uses high-capacity graphite spark gap technology, offering excellent follow current interruption and energy withstand capability.

The independent two-pole design improves system reliability by preventing one pole failure from affecting the other. The device maintains zero leakage current and zero power consumption during normal operation.

High-purity copper conductors and large terminals provide low resistance, strong current capacity, and stable operation under high surge conditions.

The enclosure uses UL94V-0 flame-retardant material with IP20 protection rating, ensuring safe operation in industrial environments.

315A Backup Fuse Coordination for Single-Phase High-Current Systems

Technical specifications:

Nominal discharge current In: 25kA (8/20μs)
Voltage protection level Up: 1.5kV
Response time ≤100ns
Recommended backup fuse: 315A gG
Cable size: 4-35mm²

The product integrates thermal disconnection and red/green status indication for convenient maintenance. Optional remote alarm contacts enable centralized monitoring.

A reliable Type 1 lightning protection solution for single-phase high-current distribution systems.

Model	NPS01-FA25/275/2	NPS01-FA25/320/2	NPS01-FA25/385/2
SPD Test Category	Type1/ClassI (EN/IEC61643-11, GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V	320V	385V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	25kA	25kA	25kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	25kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	1.5kV	1.5kV	1.5kV
Voltage Protection Level [L-PE, N-PE] Up	≤100ns
Response Time	315A gG Fuse
Backup Fuse	Normally Open and Normally Closed Contact Terminals
Remote Signal Alarm	AC: 250V/0.5A, 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Energy Un/In	0.5mm² to 1.5mm²
Remote Alarm Signal Connection Wire	Floating Changeover Contact
Remote Contact Type	-40℃ to +80℃; 5%~95%
Temperature and Humidity Range	Red: Failed; Green: Normal
Disconnector Operation Indicator	4mm² Solid Wire / Flexible Wire
Minimum Installation Conductor Cross-Section Area (L, N, PE)	35mm² Standard Wire / 25mm² Flexible Wire

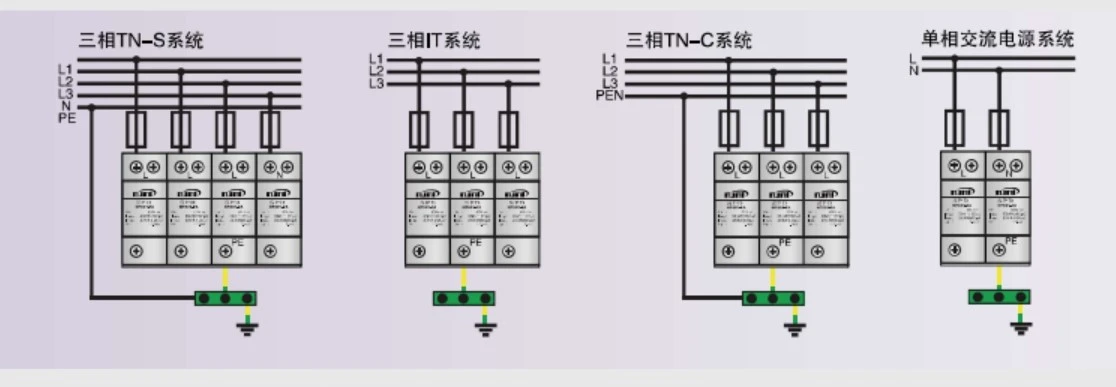

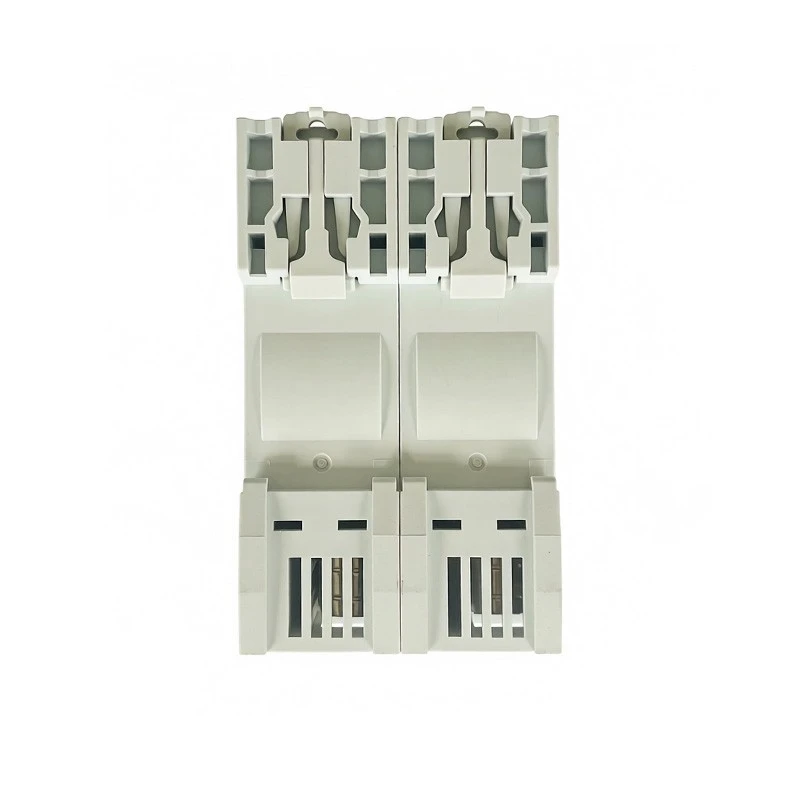

Maximum Installation Conductor Cross-Section Area (L, N, PE)	35mm Standard DIN Rail
Installation Method	Red Thermoplastic Material, UL94V-0
Enclosure Material	IP20
Enclosure Protection Degree	W×L×H: 54×91×66mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
