Pure Type 1 25kA Three-Pole High-Capacity Protection for Industrial Three-Phase Systems

Product Overview

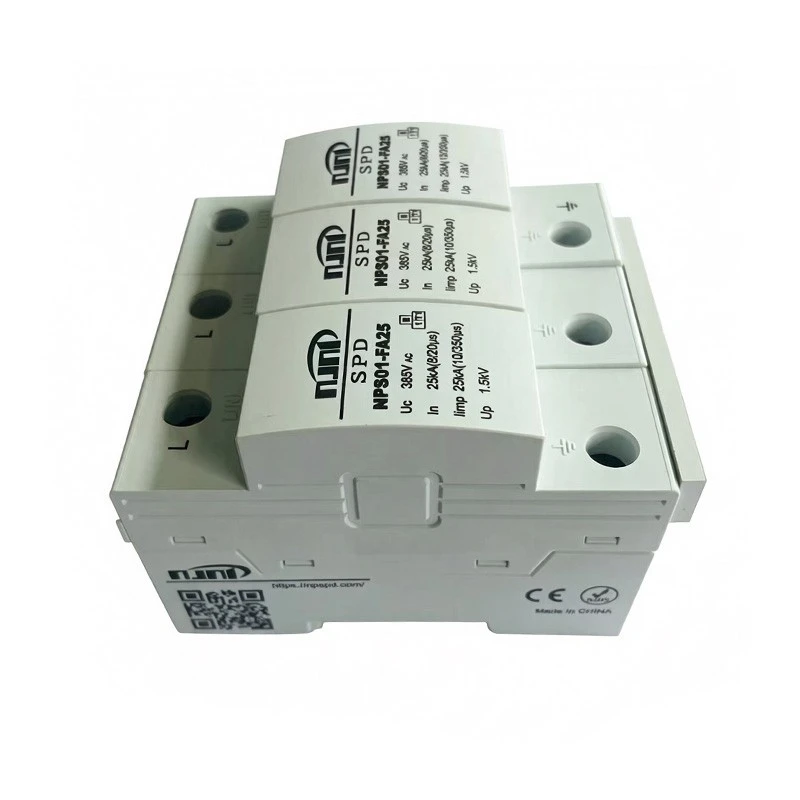

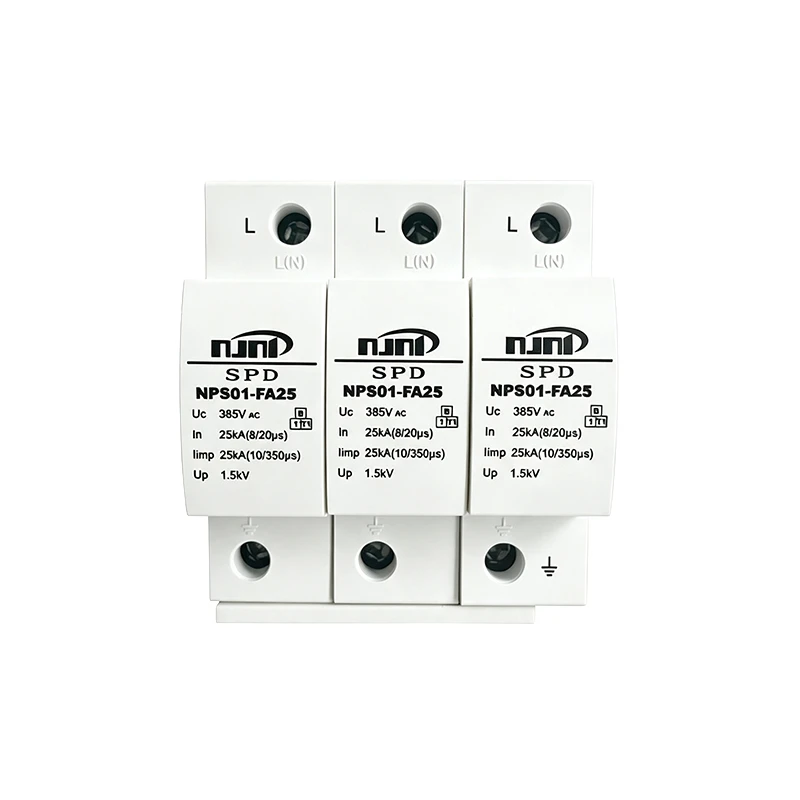

NPS01-FA25 AC 3P Surge Protective Device is a high-capacity pure spark gap Type 1 (Class I) SPD designed for critical three-phase three-wire power distribution systems. It complies with EN/IEC 61643-11 and GB/T 18802.11 standards and is suitable for primary lightning protection in high-risk environments.

The device adopts an independent L1/L2/L3 three-pole graphite spark gap structure, with a lightning impulse current capability of Iimp 25kA (10/350μs). It can directly discharge high-energy lightning currents caused by direct strikes, providing reliable protection for important industrial power systems.

With an 81mm modular design, the product supports standard 35mm DIN rail installation and covers Uc voltage levels from 275V to 385V. It is widely used in industrial power distribution, petrochemical facilities, metallurgy, rail transit, photovoltaic systems, and other heavy-duty applications.

Independent Three-Pole High-Capacity Graphite Spark Gap Technology

Each pole uses high-purity graphite spark gap technology, providing excellent follow current interruption capability and high energy withstand performance.

The independent three-pole design prevents a single pole fault from affecting the remaining phases, improving system reliability. The optimized graphite electrode structure ensures stable discharge characteristics and strong resistance to repeated lightning impulses.

The conductive path adopts high-purity copper components and large terminals, providing low contact resistance, high current carrying capacity, and low temperature rise during surge events.

The housing is made of UL94V-0 flame-retardant material with IP20 protection rating, ensuring safe operation in industrial environments.

315A Backup Fuse Compatible for Industrial High-Current Systems

Technical specifications:

Nominal discharge current In: 25kA (8/20μs)
Voltage protection level Up: 1.5kV
Response time ≤100ns
Recommended backup fuse: 315A gG
Cable size: 4-35mm²
Operating temperature: -40℃ to +80℃

Equipped with thermal disconnection and red/green status indication for quick fault identification. Optional remote alarm contacts support connection to SCADA or power monitoring systems.

A high-reliability Type 1 lightning protection solution for industrial three-phase high-current distribution systems.

Model	NPS01-FA25/275/3	NPS01-FA25/320/3	NPS01-FA25/385/3
SPD Test Category	Type1/ClassI (EN/IEC61643-11, GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V	320V	385V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	25kA	25kA	25kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	25kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	1.5kV	1.5kV	1.5kV
Voltage Protection Level [L-PE, N-PE] Up	≤100ns
Response Time	315A gG Fuse
Backup Fuse	Normally Open and Normally Closed Contact Terminals
Remote Signal Alarm	AC: 250V/0.5A, 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Energy Un/In	0.5mm² to 1.5mm²
Remote Alarm Signal Connection Wire	Floating Changeover Contact
Remote Contact Type	-40℃ to +80℃; 5%~95%
Temperature and Humidity Range	Red: Failed; Green: Normal
Disconnector Operation Indicator	4mm² Solid Wire / Flexible Wire
Minimum Installation Conductor Cross-Section Area (L, N, PE)	35mm² Standard Wire / 25mm² Flexible Wire
Maximum Installation Conductor Cross-Section Area (L, N, PE)	35mm Standard DIN Rail
Installation Method	Red Thermoplastic Material, UL94V-0
Enclosure Material	IP20
Enclosure Protection Degree	W×L×H: 81×91×66mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
