Pure Type 1 15kA Four-Pole Lightning Protection for Three-Phase Four-Wire Systems

Product Overview

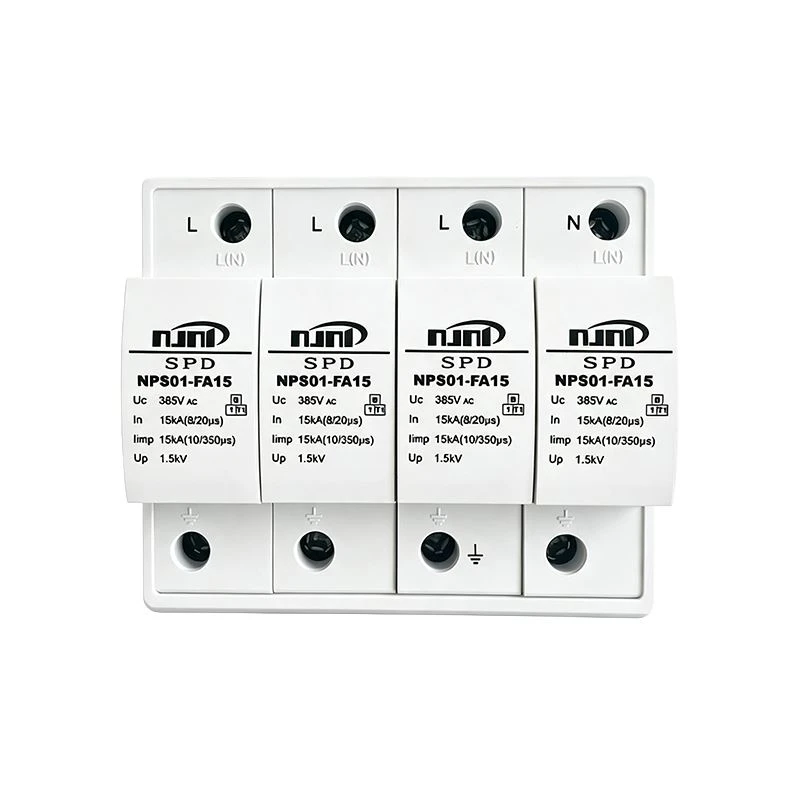

NPS01-FA15 AC 4P Surge Protective Device is a pure spark gap Type 1 (Class I) SPD designed for three-phase four-wire power distribution systems. It complies with EN/IEC 61643-11 and GB/T 18802.11 standards and is suitable for primary lightning protection applications.

The device adopts an integrated L1/L2/L3/N four-pole structure, with independent graphite spark gaps for each pole. The lightning impulse current capability reaches Iimp 15kA (10/350μs), enabling direct discharge of high-energy lightning currents generated by direct strikes.

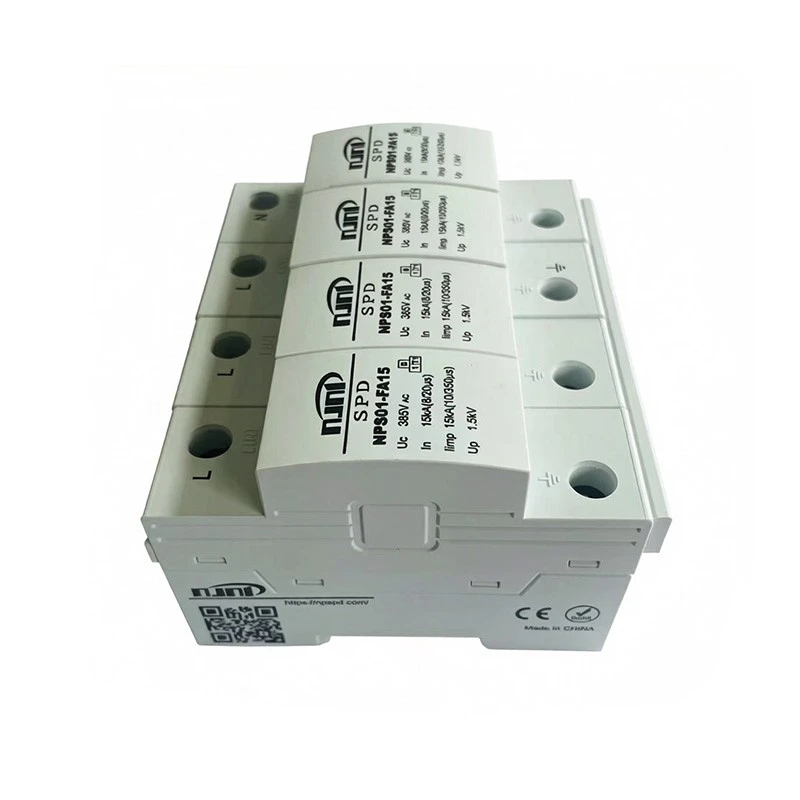

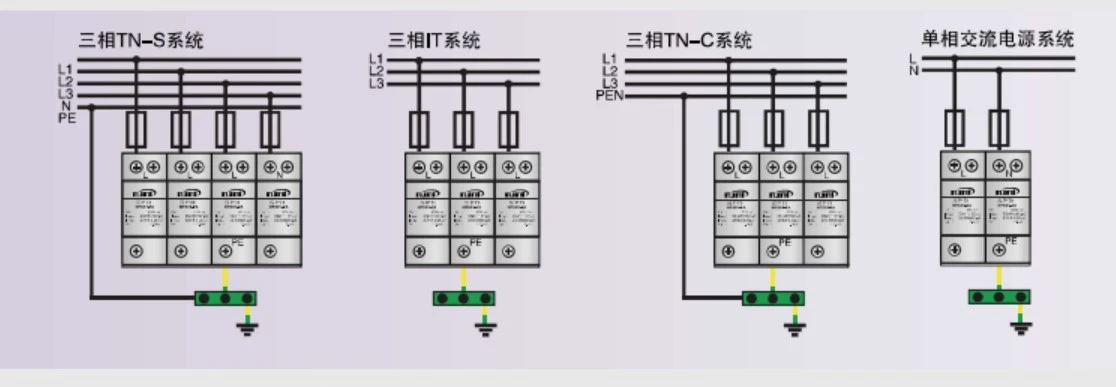

With a 108mm modular design, the product supports standard 35mm DIN rail installation and covers Uc voltage levels from 275V to 385V. It is widely used in building power systems, electrical distribution, data centers, communication rooms, and other three-phase incoming power applications.

Independent Four-Pole Graphite Spark Gap, Long Service Life and Stable Protection

Each pole adopts high-purity graphite spark gap technology, providing excellent follow current interruption capability. During normal operation, it maintains zero leakage current and zero power consumption, ensuring long-term reliability.

The independent four-pole design prevents failure of one pole from affecting other poles. The optimized graphite electrode structure provides stable discharge characteristics and strong repeated surge resistance.

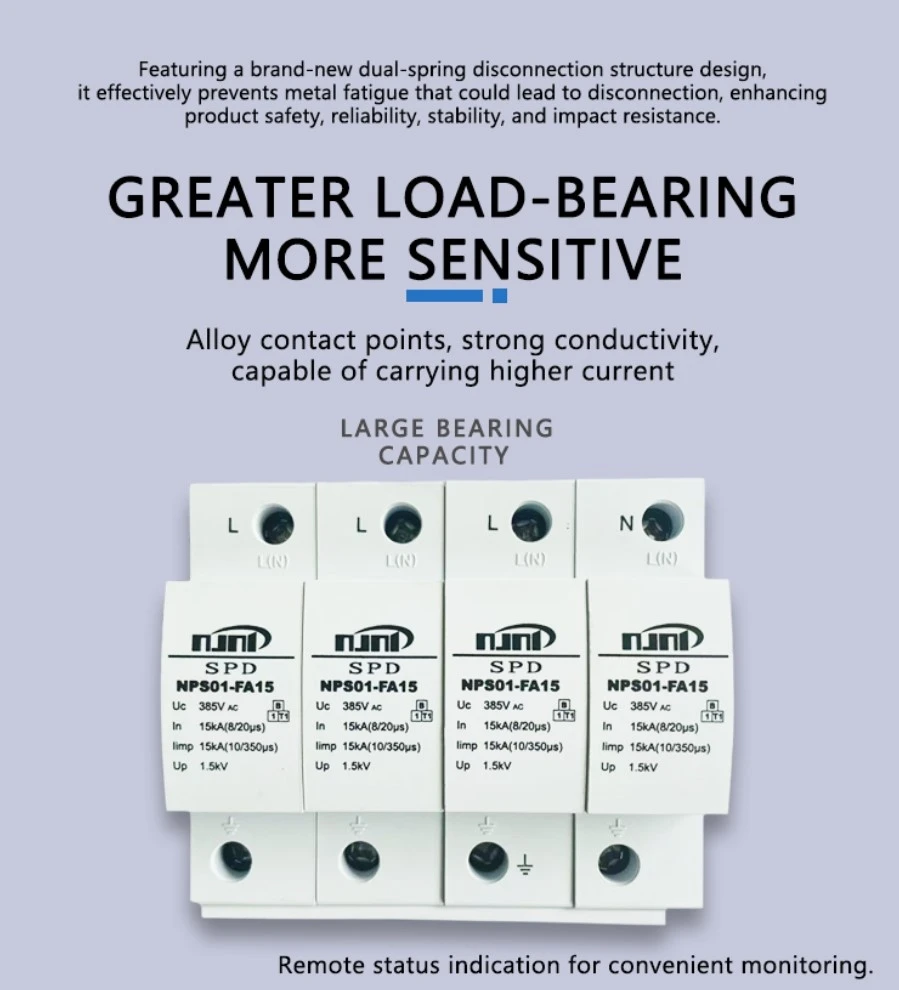

High-purity copper conductive components and large terminals ensure low contact resistance, strong current capacity, and reduced temperature rise under high current conditions.

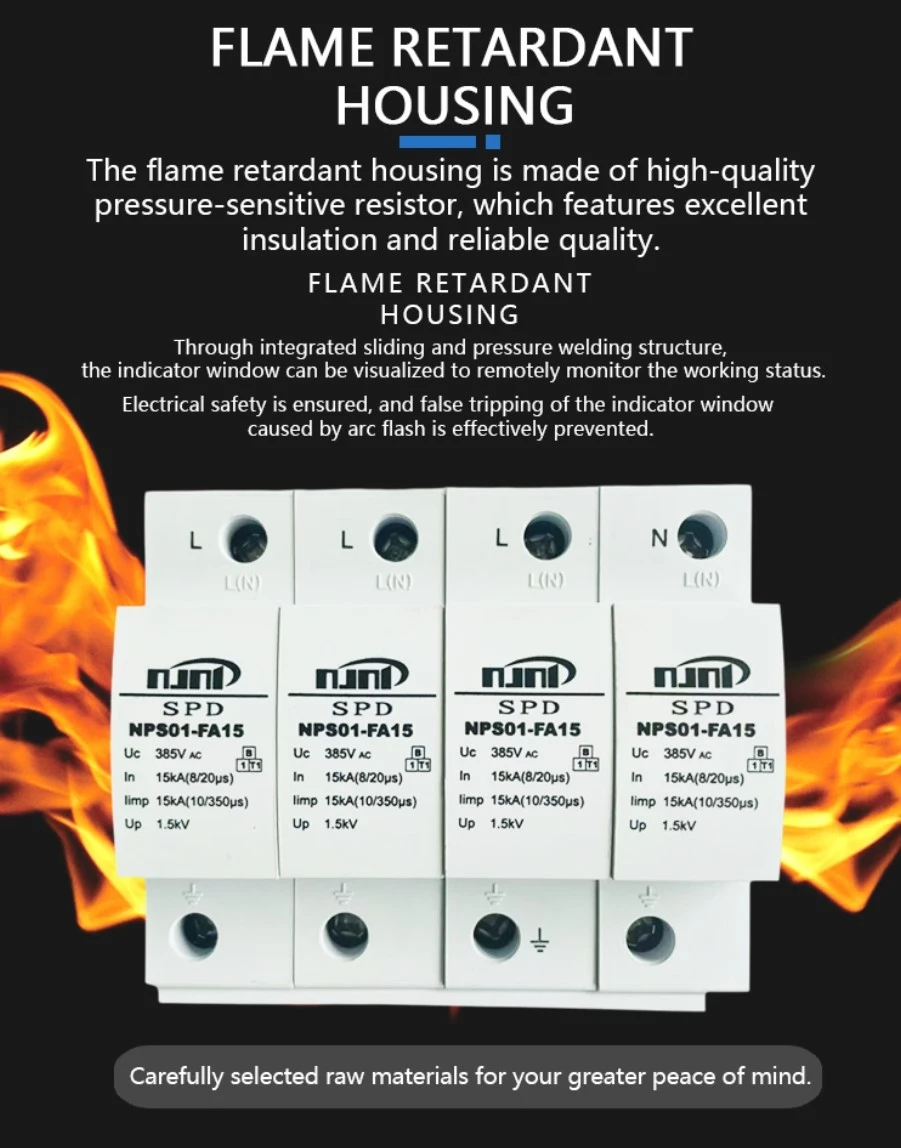

The housing is made of UL94V-0 flame-retardant material with IP20 protection rating, meeting industrial safety requirements.

200A Backup Fuse Coordination for Graded Lightning Protection Systems

Technical specifications:

Nominal discharge current In: 15kA (8/20μs)
Voltage protection level Up: 1.5kV
Response time ≤100ns
Recommended backup fuse: 200A gG
Cable size: 4-35mm²
Operating temperature: -40℃ to +80℃

Equipped with independent thermal disconnection and red/green status indication for easy maintenance. Optional remote alarm contacts support centralized monitoring systems.

A reliable Type 1 lightning protection solution for three-phase four-wire high-current distribution systems.

Model	NPS01-FA15/275/4	NPS01-FA15/320/4	NPS01-FA15/385/4
SPD Test Category	Type1/ClassI (EN/IEC61643-11, GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V	320V	385V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	15kA	15kA	15kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	15kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	1.5kV	1.5kV	1.5kV
Voltage Protection Level [L-PE, N-PE] Up	≤100ns
Response Time	200A gG Fuse
Backup Fuse	Normally Open and Normally Closed Contact Terminals
Remote Signal Alarm	AC: 250V/0.5A, 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Energy Un/In	0.5mm² to 1.5mm²
Remote Alarm Signal Connection Wire	Floating Changeover Contact
Remote Contact Type	-40℃ to +80℃; 5%~95%
Temperature and Humidity Range	Red: Failed; Green: Normal
Disconnector Operation Indicator	4mm² Solid Wire / Flexible Wire
Minimum Installation Conductor Cross-Section Area (L, N, PE)	35mm² Standard Wire / 25mm² Flexible Wire
Maximum Installation Conductor Cross-Section Area (L, N, PE)	35mm Standard DIN Rail
Installation Method	Red Thermoplastic Material, UL94V-0
Enclosure Material	IP20
Enclosure Protection Degree	W×L×H: 108×91×66mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
