Type 1+2 Combined Protection, Compact Single-Pole Modular Design

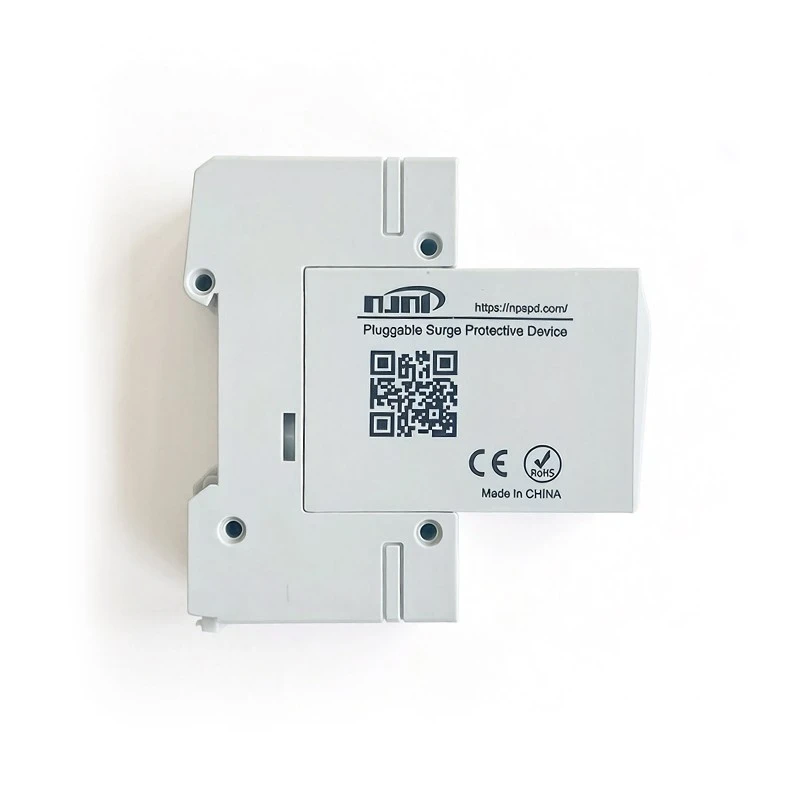

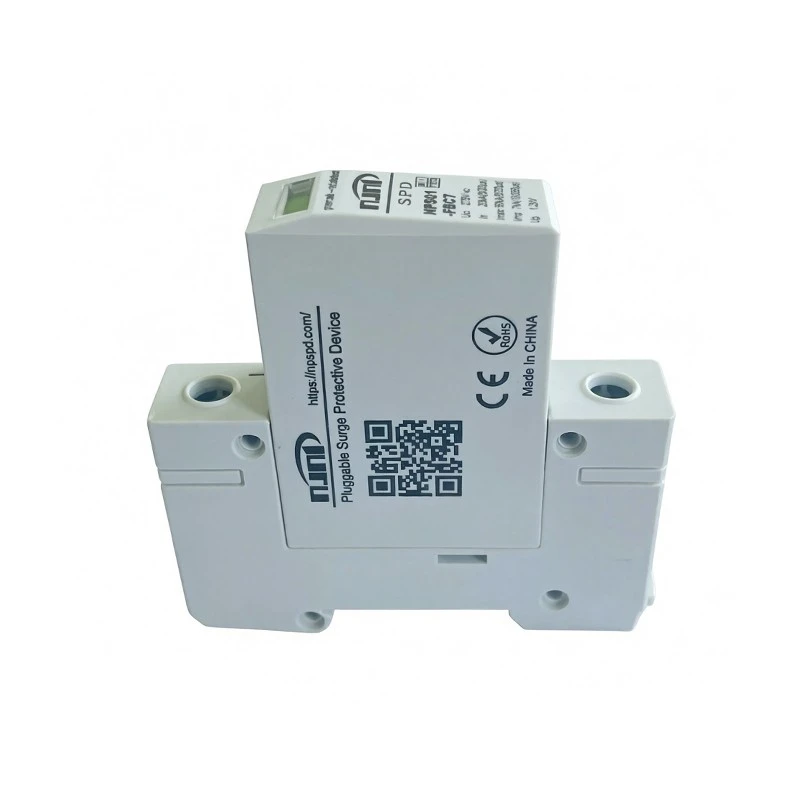

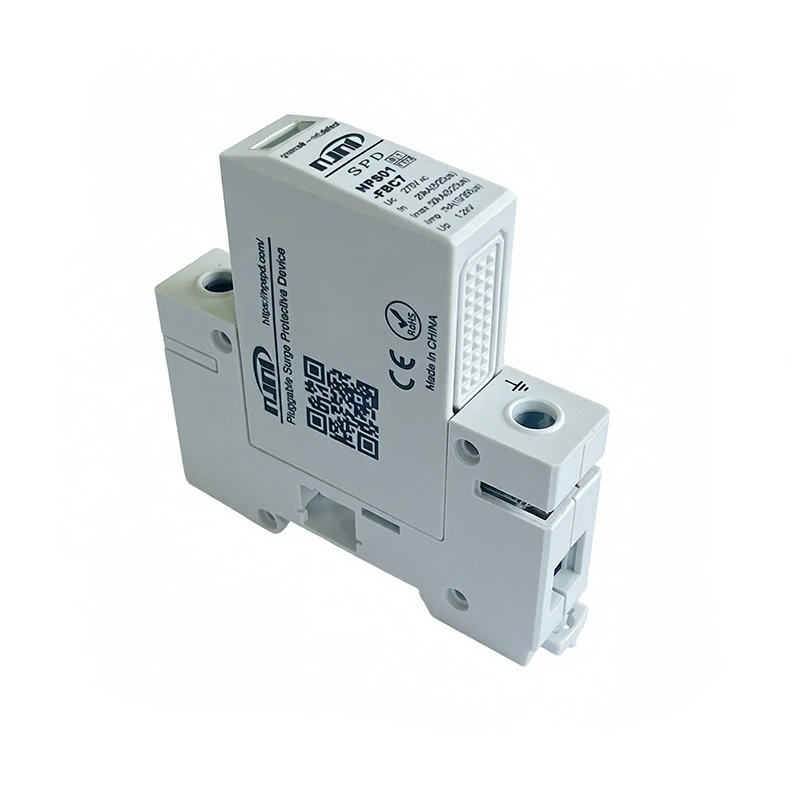

Product Overview

The NPS01-FBC7 AC 1P Surge Protective Device is a Type 1+2 combined power surge protection solution developed by Ningpu Lightning Protection. Designed according to EN/IEC 61643-11 and GB/T 18802.11 international standards, it has passed Type 1+2 / Class I+II testing requirements.

With a compact 18mm single-module width design, the device supports standard 35mm DIN rail installation and provides flexible voltage options with a maximum continuous operating voltage (Uc) ranging from 275V to 440V. It is widely used for incoming power protection in single-phase distribution systems, including building electrical installations, communication rooms, data centers, photovoltaic systems, wind power facilities, and industrial control applications.

Premium Components And UL94V-0 Flame-Retardant Housing

The internal structure adopts high-quality zinc oxide varistors combined with graphite spark gaps and high-performance gas discharge components. This design provides excellent resistance against temperature variation, humidity, aging, and long-term electrical stress.

The enclosure is made of UL94V-0 grade red thermoplastic flame-retardant material with an IP20 protection rating, ensuring reliable insulation performance and operational safety. High-purity copper conductive parts and metal terminals are used to maintain low temperature rise during high-current discharge.

Advanced manufacturing processes, including robotic welding and automatic wave soldering, ensure stable product consistency. Every unit undergoes 100% factory inspection and impulse current testing before delivery to guarantee reliable protection performance.

7kA Lightning Current Capacity With 25ns Fast Response

This series provides an impulse current capacity of 7kA (10/350μs), a nominal discharge current (In) of 20kA (8/20μs), and a maximum discharge current (Imax) of 50kA. With a voltage protection level (Up) as low as 1.2kV and a response time of ≤25ns, it delivers fast and accurate surge protection with low residual voltage.

The built-in thermal disconnector provides safe failure protection. The status indicator displays green during normal operation and red when replacement is required. It can be used with a 100A gG backup fuse for enhanced protection coordination.

Optional remote signaling contacts (normally open/normally closed switching output) are available for centralized monitoring. The device supports 0.5-1.5mm² connection wires and operates reliably in environments from -40℃ to +80℃ with 5%-95% humidity.

Model	NPS01-FBC7/275/1	NPS01-FBC7/320/1	NPS01-FBC7/385/1	NPS01-FBC7/440/1
SPD Test Category	Type1+2/ClassI+II (EN/IEC61643-11, GB/T18802.11)
Maximum Continuous Operating Voltage Uc (Current Type: a.c.)	275V(NPE255V)	320V	385V(NPE255V)	440V
Lightning Impulse Current (10/350μs) [L-PE, N-PE] Iimp	7kA	7kA	7kA	6.25kA
Nominal Discharge Current (8/20μs) [L-PE, N-PE] In	20kA
Maximum Discharge Current (8/20μs) [L-PE, N-PE] Imax	50kA
Voltage Protection Level [L-PE, N-PE] Up	1.2kV	1.3kV	1.5kV	1.7kV
Response Time	≤25ns (N-PE: 100ns)
Backup Fuse	100A gG Fuse
Remote Signal Alarm	Normally Open and Normally Closed Contact Terminals
Remote Alarm Signal Energy Un/In	AC: 250V/0.5A; 125V/1A; DC: 30V/0.1A
Remote Alarm Signal Connection Wire	0.5mm² to 1.5mm²
Remote Contact Type	Floating Changeover Contact
Temperature and Humidity Range	-40℃ to +80℃, 5%~95%
Disconnector Operation Indicator	Red: Failed; Green: Normal
Minimum Installation Conductor Cross-Section Area (L, N, PE)	4mm² Solid Wire / Flexible Wire
Maximum Installation Conductor Cross-Section Area (L, N, PE)	25mm² Standard Wire / Flexible Wire
Installation Method	35mm Standard DIN Rail
Enclosure Material	Red Thermoplastic Material, UL94V-0
Enclosure Protection Degree	IP20
Dimensions	W×L×H: 18×87×87mm
Note: The above products can be optionally equipped with a remote signaling function. Products with remote signaling will have "/FM" added after the original model number, such as NPS01-FBC7/275/1/FM.
